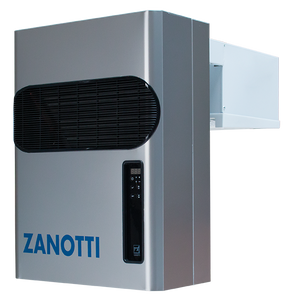

Zanotti Refrigeration Uniblock MGM110EAXBChill 11m³ (240v)

Zanotti Refrigeration Uniblock MGM110EA11XBChill 11m³ (240v)

• Average Delivery Timescale: 3- 4 Working Days
• Type Chill
• Cubic metres (m3) 12.0
• Single Phase Electric

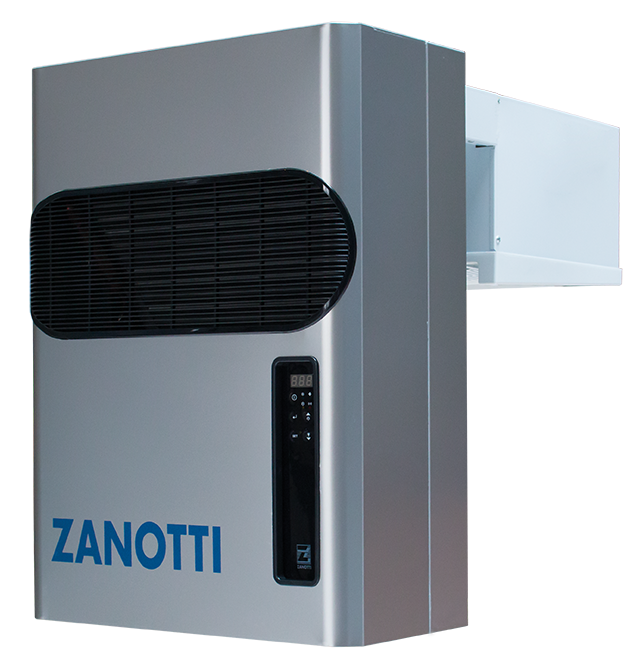

GM models are very versatile monoblock units which can be installed in the cold room either in a straddle position or through-the-wall with a thru-wall kit. The new compact and modern design is even more emphasized by the new metallic grey colour.

The units are equipped with:

• automatic alarm system for insufficient cleaning of condenser
• capillary for expansion of the refrigerant
• fully automatic, hot gas de-frosting electrical panel with electronic control station and command keypad automatic
• condensation water elimination system without the need for connection to outside systems for collection line
• cable for door micro switch and cold room light (with overhead lamp).
• For low temperature the cable for the door heater is also supplied.
• The length of the cable supplied is two metres.

• The new-generation electronic command station has an easy to use user interface and is organised into folders, programmable according to custom system requirements. Its main functions are: adjustment of thermostat differential entering work setting automatic or manual de-frost evaporator fans start delay pause after de-frost to drain condensation water sensor breakdown alarm turning cold room light on protection on number of pressure switch cut-ins
