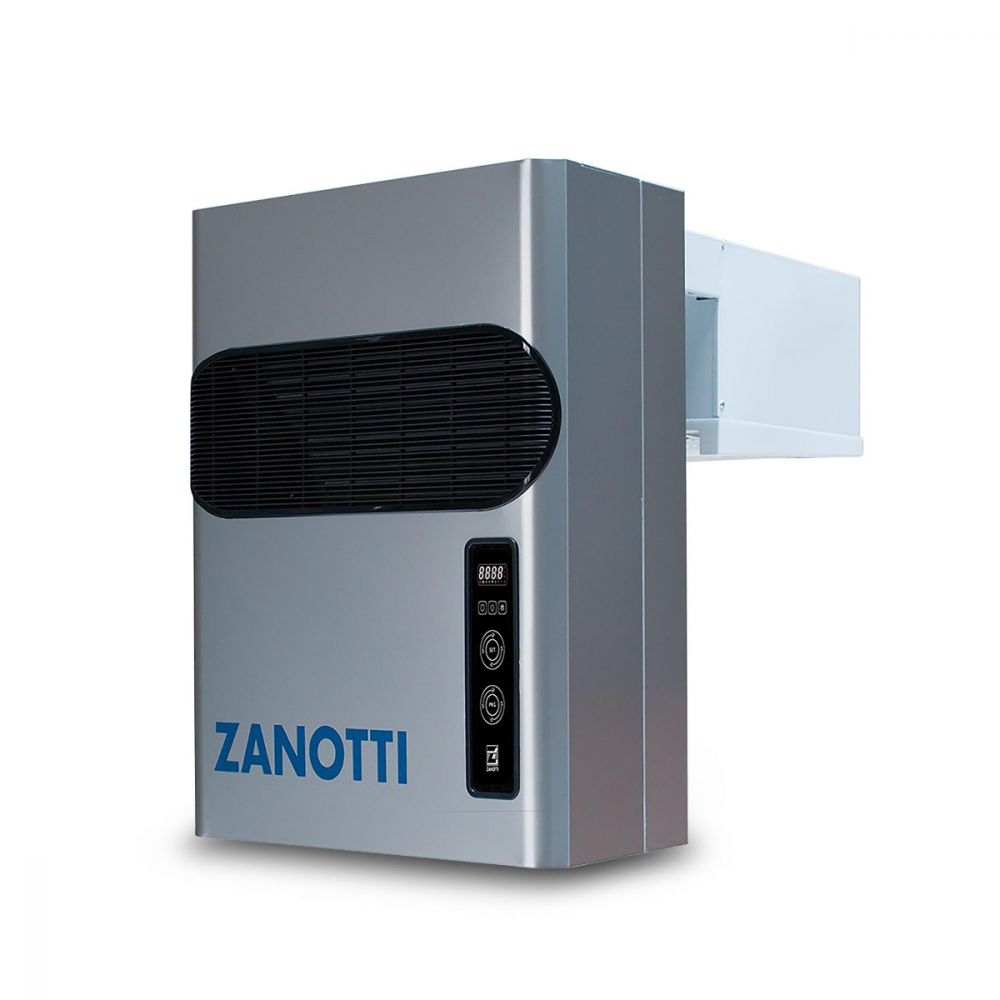

Zanotti Refrigeration Uniblock MGM106EA11XBChiller 8m³ (240v)

Please Note from April 2020 this model has been replaced with MGM106EB11XA WITH R134a Gas

Zanotti Refrigeration Uniblock Chill 8m³ (240v) Average Delivery Timescale: 3- 4Working Days Type Chill Cubic metres (m3) 8.0 with 80 mm miniumum panel insulation

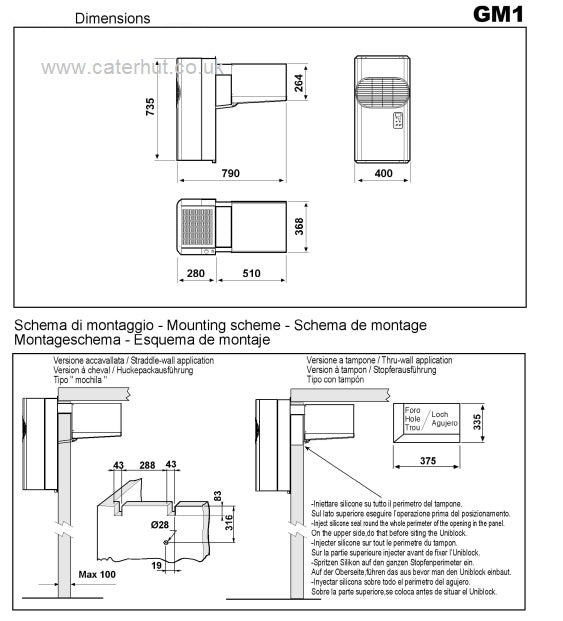

GM models are very versatile monoblock units which can be installed in the cold room either in a straddle position or through-the-wall with a thru-wall kit. The new compact and modern design is even more emphasized by the new metallic grey colour.

The units are equipped with:

• automatic alarm system for insufficient cleaning of condenser
• capillary for expansion of the refrigerant
• fully automatic, hot gas de-frosting electrical panel with electronic control station and command keypad automatic
• condensation water elimination system without the need for connection to outside systems for collection line
• cable for door micro switch and cold room light (with overhead lamp).
• For low temperature, the cable for the door heater is also supplied.
• The length of the cable supplied is two metres.

• The new-generation electronic command station has an easy to use user interface and is organised into folders, programmable according to custom system requirements. Its main functions are: adjustment of thermostat differential entering work setting automatic or manual de-frost evaporator fans start delay pause after de-frost to drain condensation water sensor breakdown alarm turning cold room light on protection on number of pressure switch cut-ins
