Zanotti Freezer BGM330DB11xB| 32m³ | (400v)

Zanotti Freezer BGM330DB11xB| 32m³ | (400v)

• Single phase versions may be available on request (subject to additional charge).

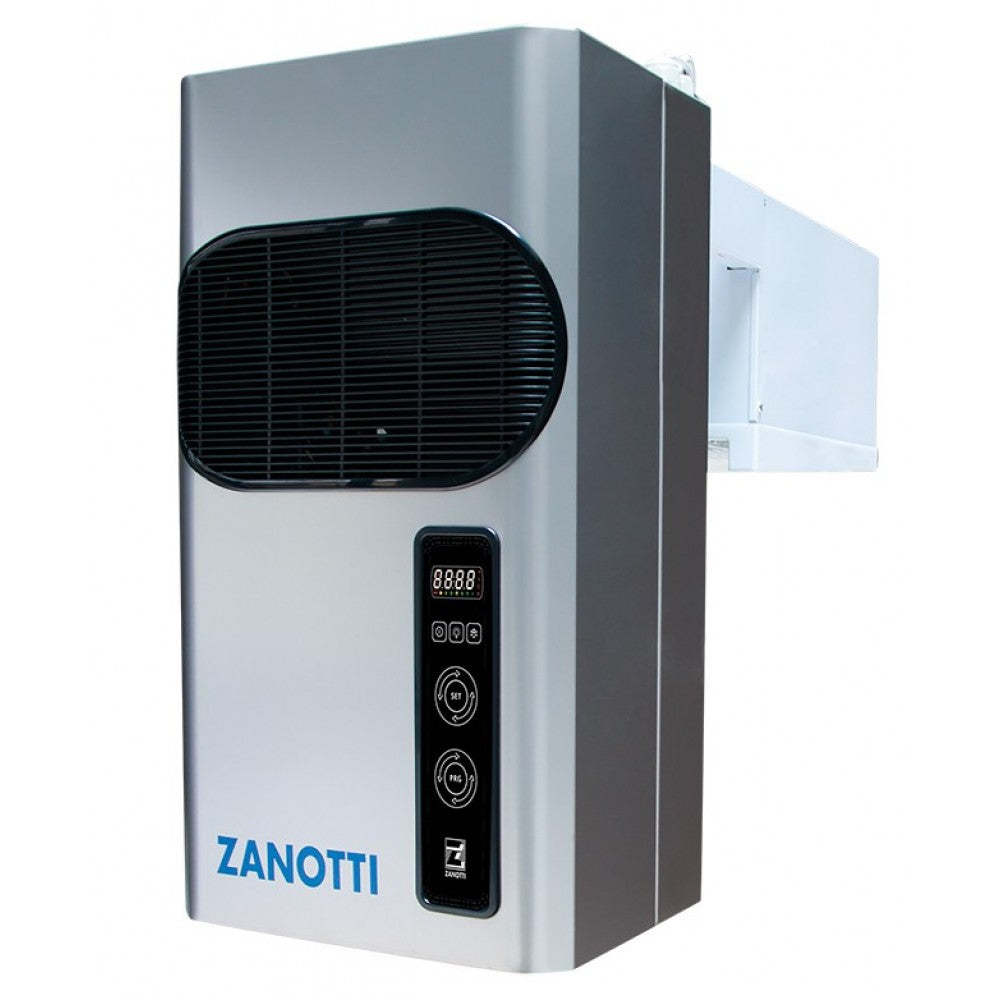

Zanotti BGM330DB11XB Freezer Unit | 32m³ Capacity | 400V (3 Phase)
2020 F-Gas Compliant | Ideal for Freezer Rooms up to 29m³
Minimum Panel Insulation: 100mm | Max Ambient Temperature: +28°C

The Zanotti BGM330DB11XB is part of the latest F-Gas compliant BGM range and is ideal for maintaining cold storage in small to medium-sized freezer rooms. Optimally suited for rooms up to 29m³, this unit delivers reliable performance when installed in environments with a minimum panel insulation of 100mm and ambient temperatures not exceeding +28°C.

Key Features:

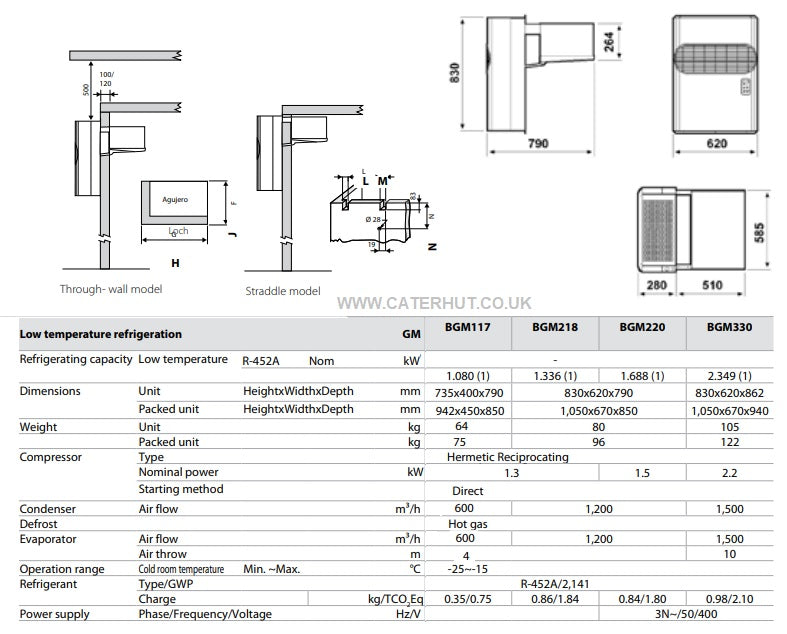

• Flexible Wall-Mounted Installation:

  • Straddle mounting for new installations

  • Through-wall mounting for refurbishment projects

• Modern, Low-Profile Aesthetics:

  • Outdoor unit finished in metallic grey

  • Evaporator unit in white, blending unobtrusively into cold room walls

• Reduced Noise Operation:

  • Compressor compartment is insulated with soundproofing material

• Energy Efficient Cooling:

  • Equipped with microchannel condensers to reduce refrigerant charge and increase efficiency

• User-Friendly Interface:

  • Supplied with a next-generation control panel featuring an intuitive design

• Eco-Conscious Refrigerant:

  • Supplied with R452A refrigerant (from April 2018 onward)

Electrical Requirements:

• Requires a 3 Phase Electrical Supply (400V)

•
