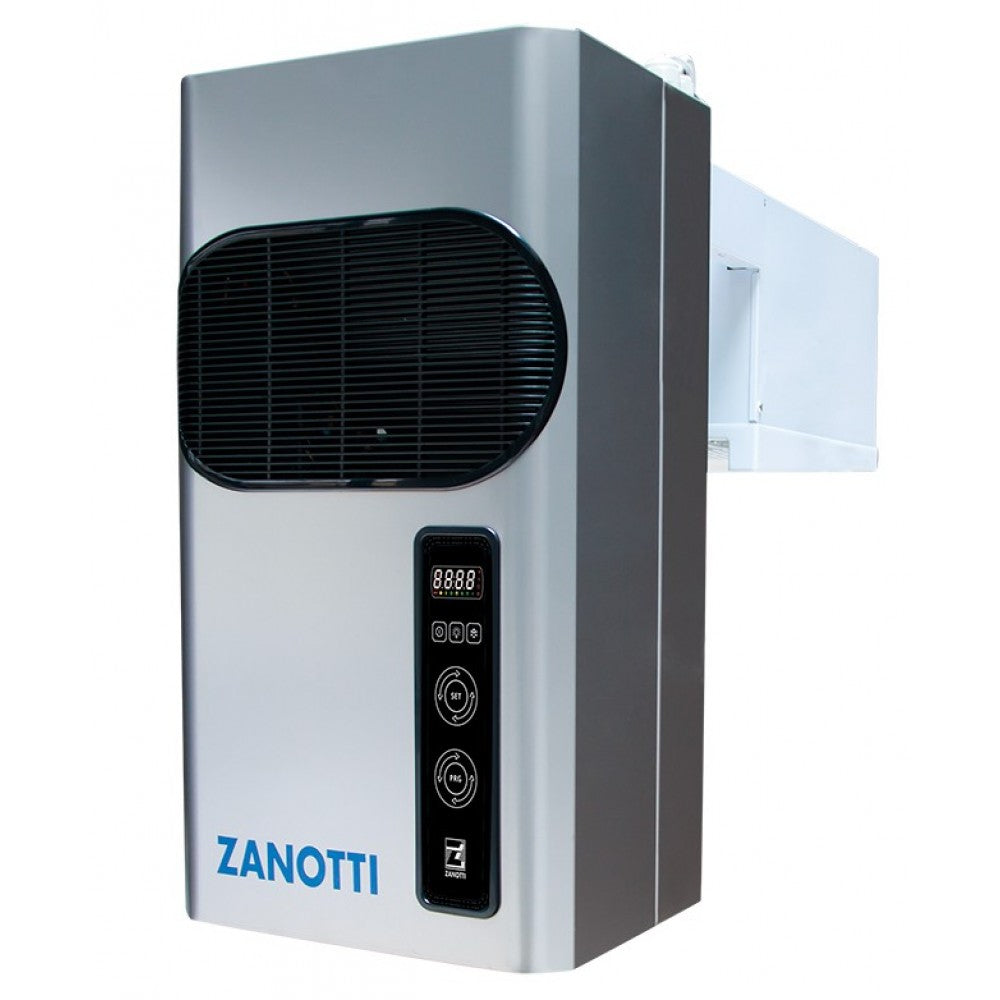

Zanotti BGM320DB11XB Freezer Unit

Zanotti BGM320DB11XB Freezer Unit

Zanotti BGM320DB11XB Freezer Unit | 28m³ Capacity | 400V (3 Phase)
 Ideal for Freezer Rooms up to 28m³
Minimum Panel Insulation: 100mm | Max Ambient Temperature: +28°C

The Zanotti BGM320DB11XB freezer unit is designed for small to medium-sized freezer rooms, offering efficient and quiet operation. This model is suitable for spaces with a maximum internal volume of 28m³, and performs optimally when used with 100mm panel insulation in environments where the ambient temperature does not exceed +28°C.

Key Features:

• Flexible Wall-Mounted Installation:

  • Straddle mounting for new builds

  • Through-wall mounting for refurbishment projects

• Discreet, Professional Appearance:

  • Outdoor unit in metallic grey

  • Evaporator in white to blend with cold room interiors

• Noise Reduction:

  • Compressor section insulated with soundproofing material

• High Energy Efficiency:

  • Features microchannel condensers to minimize refrigerant usage and boost efficiency

• Modern Control System:

  • Comes with a next-generation, user-friendly control panel

• Eco-Friendly Refrigerant:

  • Supplied with R452A refrigerant (standard from April 2018)

Electrical Requirements:

• Requires a 3 Phase Electrical Supply (400V)

• Single Phase version may be available at an additional cost.
  Contact us on 0161 713 3085 for more details.

Delivery Information:

• Delivery within 2–3 working days, subject to availability

Need Help Choosing the Right Unit?

Call 0161 713 3085 with your cold room dimensions. We offer a wide range of Zanotti models and can help you find the perfect fit.
