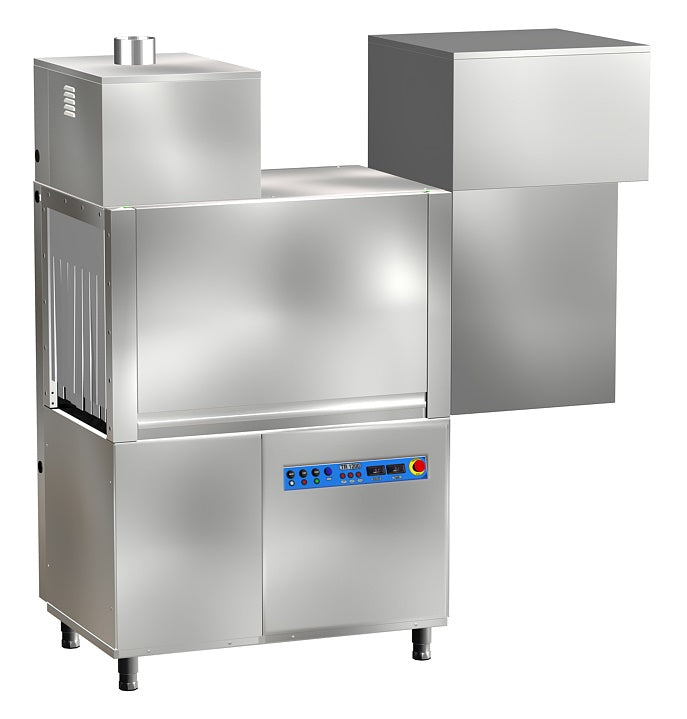

PL RACK CONVEYOR DISHWASHER ASC CD

PL RACK CONVEYOR DISHWASHER ASC CD

Maximum Throughput & Extended Configuration

The PL Rack Conveyor Dishwasher ASC CD is the largest and most powerful model in the PL series, engineered for continuous, high-volume dishwashing. With an extended 2100 mm width, this machine is ideal for industrial kitchens, institutional facilities, and large-scale catering operations that demand speed, efficiency, and flexibility.

Key Features

• Ultra-High Capacity:
  Handles up to 100 baskets per hour, ideal for fast-paced, high-demand environments.

• Extended Configuration:
  2100 mm width supports optional modules like pre-wash or drying zones, allowing tailored setups for maximum workflow efficiency.

• Heavy-Duty Power:
  Equipped with a 900 W wash pump, 100 W rinse pump, and a 12 kW boiler, backed by a total input of 27.3 kW.

• Efficient & Insulated:
  Double-skinned stainless steel body retains heat, reduces energy waste, and minimizes noise.

• Manual Operation:
  Simple, durable control interface designed for reliability in high-intensity settings.

• Optimised Water Usage:
  Uses 170 litres of water per hour, maintaining strong performance while controlling operational costs.

Technical Specifications

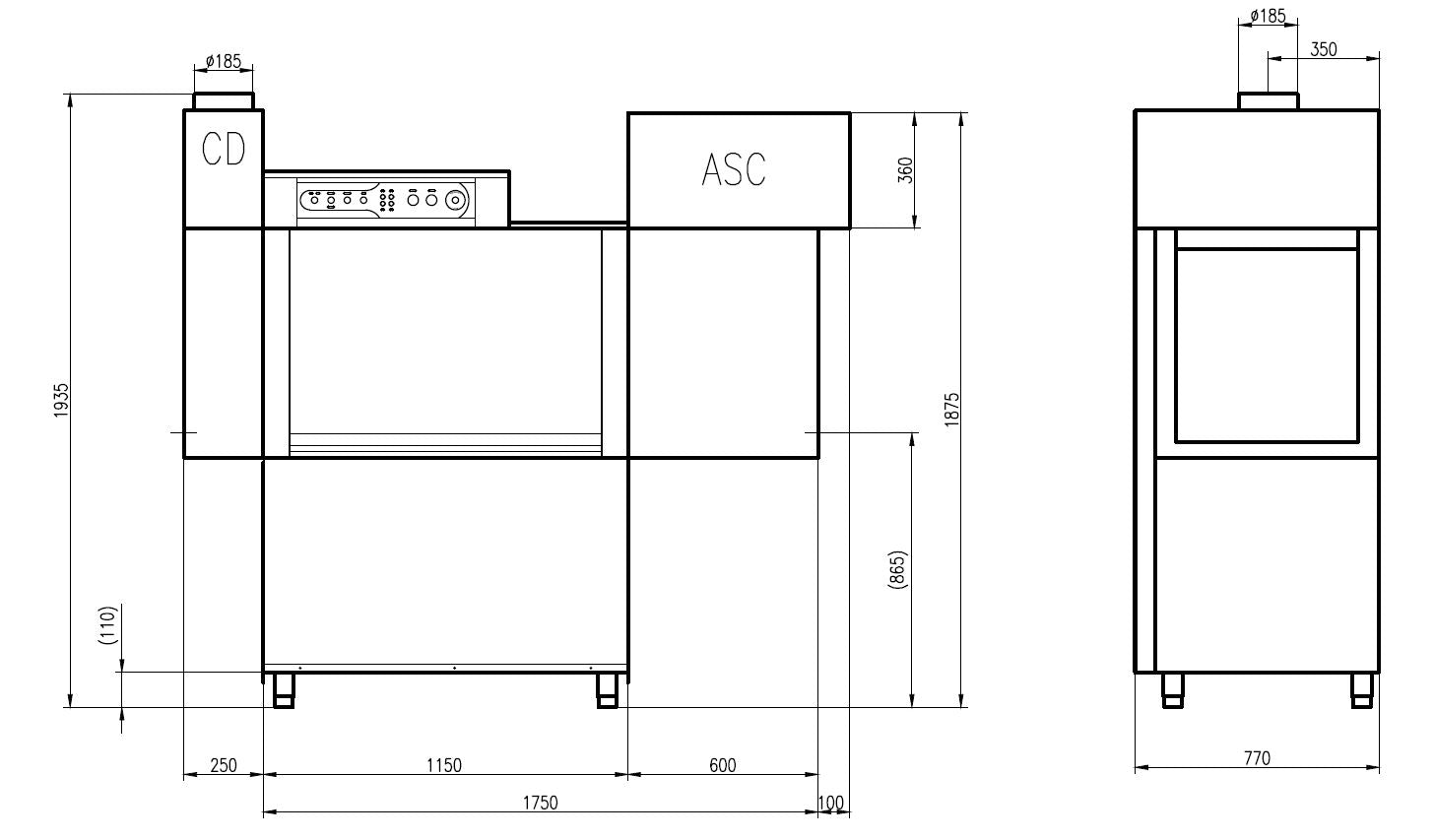

• External Dimensions (W x D x H): 2100 x 790 x 1925 mm

• Basket Throughput: 70–100 baskets per hour

• Loading Height: 470 mm

• Wash Tank Capacity: 65 litres

• Boiler Capacity: 8.5 litres

• Boiler Output: 12 kW

• Electrical Power: 27.3 kW

• Wash Pump Motor: 900 W

• Rinse Pump Motor: 100 W

• Rinse Temperature: 15°C (Note: likely incorrect – typical rinse temperatures are 55–85°C)

• Water Consumption: 170 litres per hour

• Voltage/Frequency: 400V / 50Hz

• Gross Weight: 350 kg

• Material/Finish: Stainless Steel

• Construction: Double-skinned

• Operation: Manual

Ideal for:
High-volume dishwashing setups where performance, modular expandability, and heavy-duty construction are non-negotiable.
