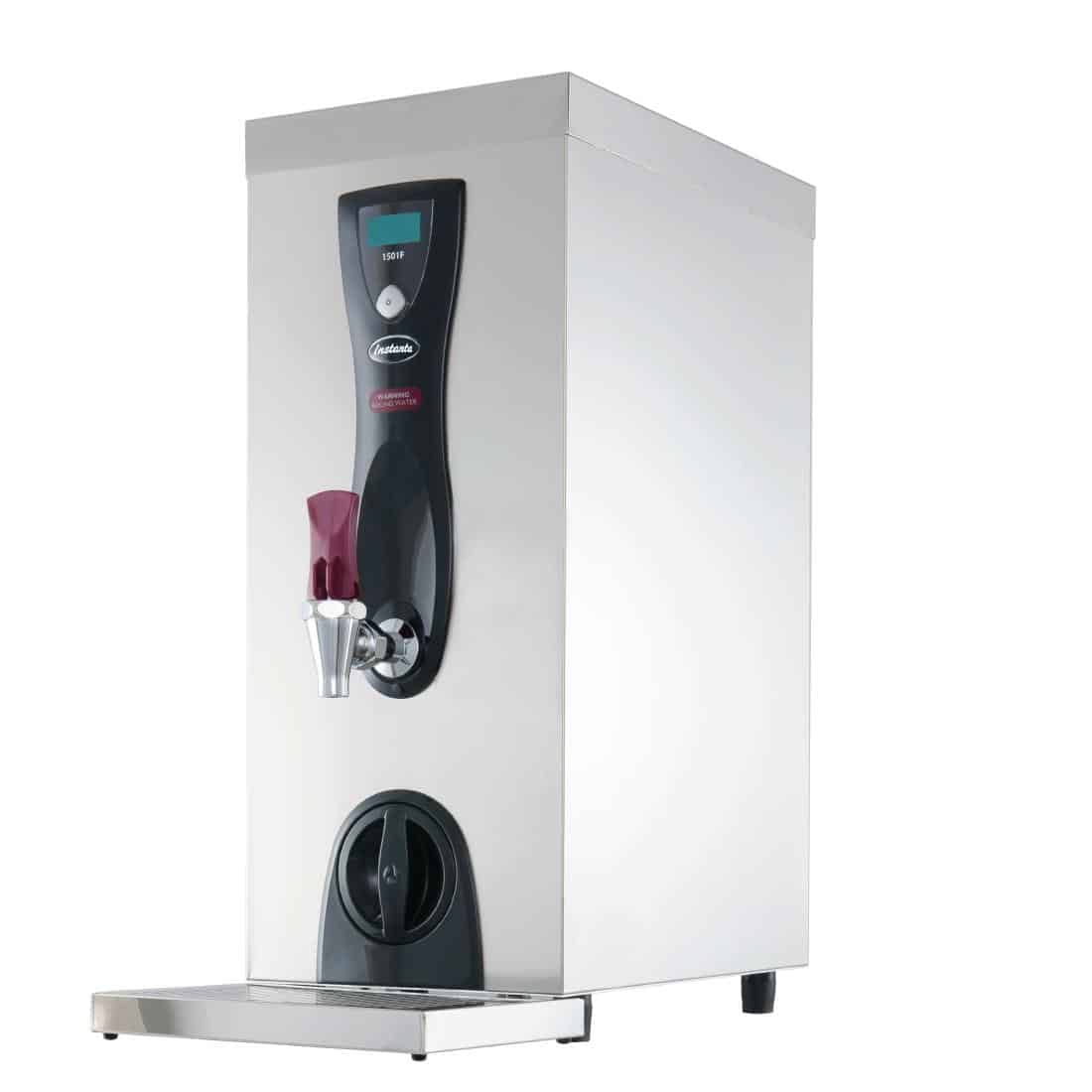

Instanta CTS17F 17L Auto Fill Water Boiler – Countertop Model

The Instanta CTS17F is a high-performance, auto fill water boiler designed for commercial use in high-demand settings. With a generous 17-litre capacity, triple-action filtration, and advanced safety and diagnostic features, it delivers consistent hot water at the ideal serving temperature with minimal energy consumption.

Key Features:

• Generous 17L Capacity: Rapid draw-off and steady recovery make it ideal for busy environments

• Auto Fill Design: Maintains water levels automatically for continuous hot water supply

• Triple-Action Filtration: Removes sediment, chlorine, and reduces limescale buildup

• Energy Efficient: Low standby power consumption (0.09 kWh)

• Accurate Temperature Control: Factory-set to 96°C, adjustable to suit beverage requirements

• Early Limescale Warning: Built-in diagnostics via LCD display

• Stainless Steel Construction: Durable, hygienic, and easy to maintain

• WRAS & EMC Approved: Fully certified for professional use

• Dual Safety Protection: Includes boil-dry and over-boil safeguards

• UK Plug Fitted: Comes ready to install with a 3-pin plug and flexible water hose

Technical Specifications:

Capacity & Output:

• Tank Capacity: 17 Litres

• Rapid Draw-Off: 17 Litres

• Hourly Output: 27 Litres (@ 96°C default)

• Recovery Rate: 0.5 Litres per minute

• Heat-Up Time: 42 minutes (full tank)

Dimensions & Weights:

• Unit Dimensions (W × D × H): 243 × 510 × 668 mm (depth includes drip tray)

• Tap Clearance: 190 mm

• Empty Weight: 14.4 kg

• Full Weight: 32.7 kg

• Packed Weight: 18 kg

• Packed Dimensions: 425 × 595 × 825 mm

Filtration System:

• Multi-Filter: Yes (taste, odour, sediment, limescale)

• Filter Rating: 3 micron

• Programmable Hardness Settings: Yes (soft/medium/hard)

• Tank Baffle Plates: Improve heat recovery, reduce steam loss

• Limescale Diagnostics: LCD early warning system

Construction:

• Body: 304 grade Stainless Steel (Superbrush polish)

• Tank: 304 & 316 grade Stainless Steel

• Tank Wall Thickness: 0.9 mm

• Drip Tray: 304 grade Stainless Steel (Mirror polish)

Electrical:

• Power Rating: 3 kW

• Voltage: 220–230 V, 50–60 Hz

• Connection: Single-phase, N & E (13A UK 3-pin plug)

• Cable Length: 1.7 m

Plumbing:

• Water Inlet: ¾” BSP (hose supplied, 1.6 m)

• Water Pressure Range: 2 – 7 bar (28–100 psi)

• Overflow/Waste Connection: Front via drip tray or optional rear kit

Compliance & Safety:

• WRAS Approved: Yes

• EMC Certified (EN 55014 & EN 61000): Yes

• Electrical Safety (EN 60335-1 & -2): Yes

• Dual Protection: Boil-dry & over-boil
