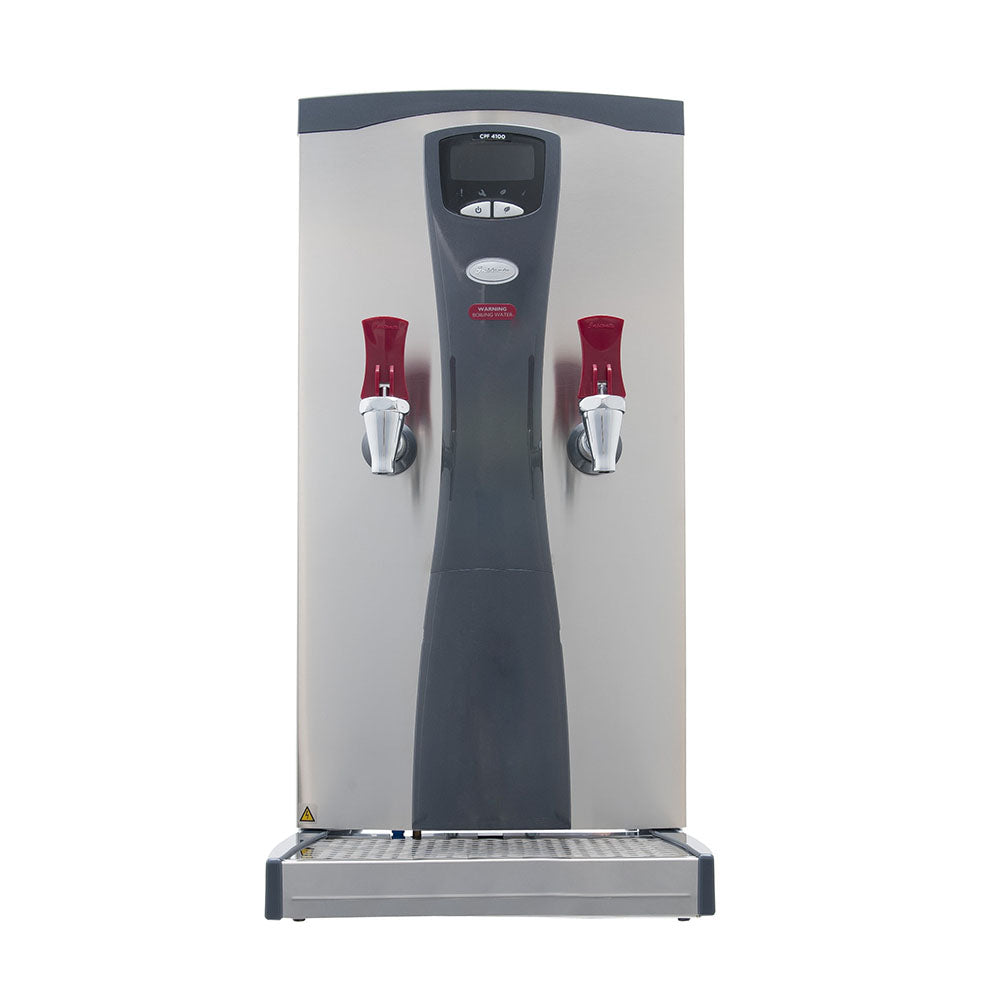

Autofill Countertop 36Ltr Water Boiler

Autofill Countertop 136Ltr Water Boiler 3001F

The Instanta CTSV36T/9 is a high-capacity, high-output auto fill water boiler built for demanding commercial environments. With a 36-litre tank, fast heat-up, dual taps, and smart features such as programmable timers and limescale diagnostics, it ensures fast, efficient service with minimal downtime. Ideal for institutions, hospitality venues, and catering services that require large volumes of boiling water throughout the day.

Key Features:

• Large 36L Tank Capacity: Supports high-volume hot water demand with rapid draw-off

• High Output Performance: Up to 85 litres/hour; quick recovery of 1.4 litres/min

• Fast Heat-Up: Reaches working temperature in just 23 minutes

• Dual Draw-Off Taps: Enables faster service in busy settings

• Energy Saving ECO Mode & 7-Day Timer: Customize operating hours and reduce power consumption

• LCD Limescale Diagnostics: Provides early warning for maintenance

• Tank Baffle Plates: Improve heat recovery and reduce steam emissions

• Dual Safety Protection: Over-boil and boil-dry safeguards for reliable operation

• Stainless Steel Construction: Premium 304 & 316 grade steel for durability and hygiene

• WRAS Approved & BS/EMC Certified: Meets UK water and electrical safety standards

Technical Specifications:

Capacity & Output:

• Tank Capacity: 36 Litres

• Rapid Draw-Off: 36 Litres

• Hourly Output (@ 96°C): 85 Litres

• Recovery Rate: 1.4 Litres per minute

• Heat-Up Time: 23 minutes (full tank)

• Temperature Range: Adjustable, default 96°C

• Standby Power Loss: 0.17 kWh

Dimensions & Weights:

• Unit Dimensions (W × D × H): 440 × 555 × 608 mm (depth includes drip tray)

• Tap Clearance: 165 mm

• Empty Weight: 21.6 kg

• Full Weight: 53.0 kg

• Packed Weight: 25.8 kg

• Packed Dimensions: 550 × 610 × 720 mm

Plumbing:

• Water Inlet: ¾” BSP

• Hose Supplied: 1.6 m food-quality flexible hose

• Pressure Range: 2 – 7 bar (28 – 100 psi)

• Waste Outlet: Front via drip tray or rear (½” BSP – 15 mm option)

Electrical:

• Power Rating: 9 kW

• Voltage: 400 V, 50–60 Hz

• Connection: 3-phase, N & E

• Installation: 13A per phase

• Cable Length: 1.7 m

Filtration & Features:

• Built-in Filtration: Not included (optional extra available)

• Timer: 7-day programmable

• Eco Mode: Yes

• Diagnostics: LCD alerts for limescale

• Construction:

  • Body: 304 grade stainless steel (Superbrush finish)

  • Tank: 304 & 316 grade stainless steel, 0.9 mm wall thickness

  • Drip Tray: 304 grade stainless steel (Mirror polish)

  • British Manufacturing
