Wall-Mounted Hood 3000 mm

Wall-Mounted Hood 3000 mm

odel in the COMPLETE series, this high-capacity wall-mounted hood delivers maximum airflow and full-width coverage—ideal for the most demanding commercial kitchen environments.

Product Description:

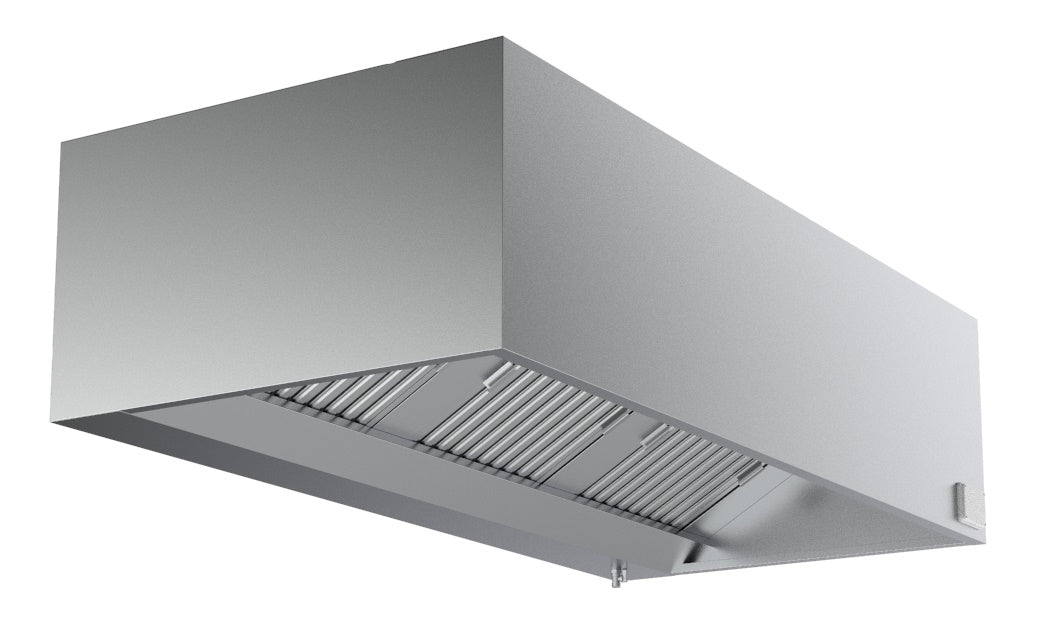

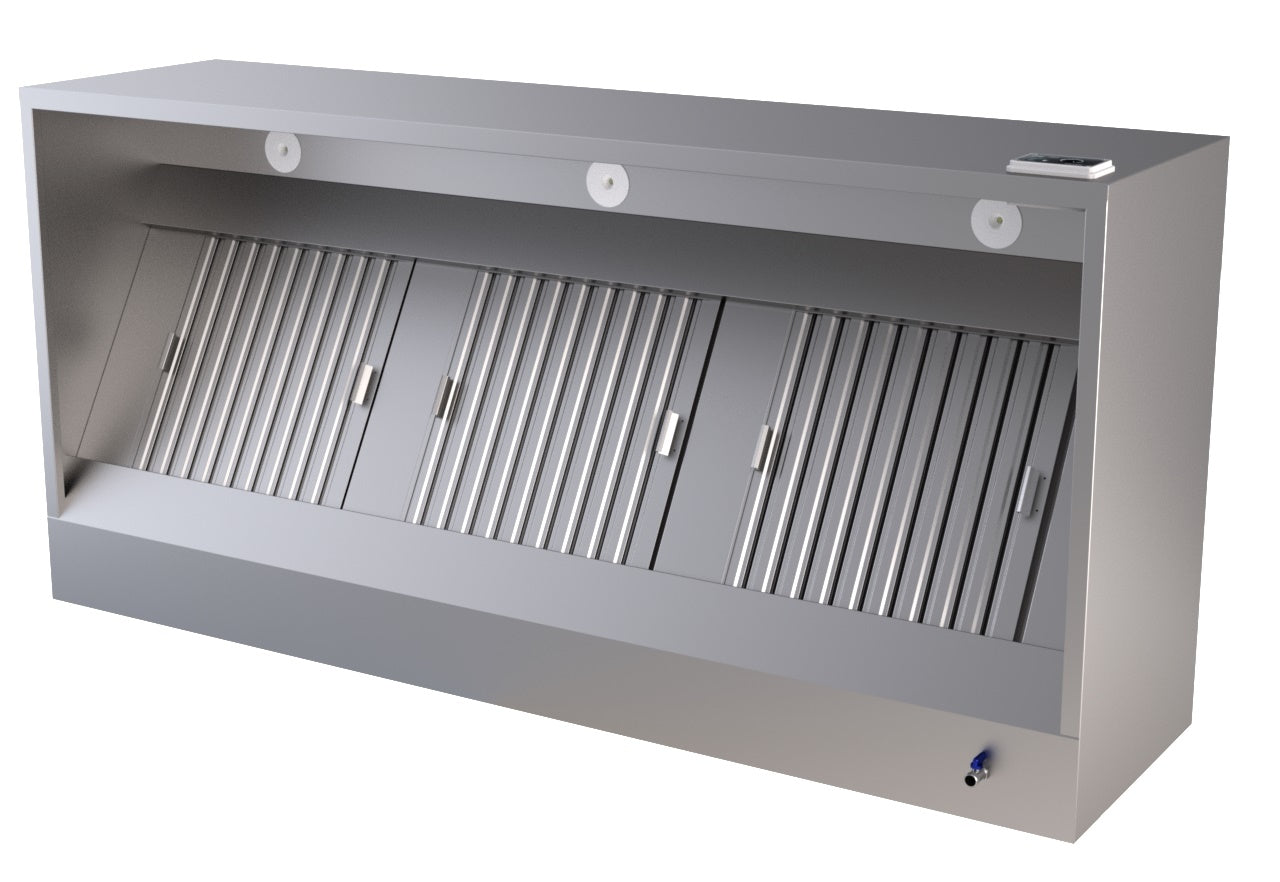

This 3000 mm wide COMPLETE wall-mounted hood is constructed from durable 430-grade stainless steel, offering industrial-grade reliability and corrosion resistance. With a depth of 950 mm and height of 520 mm, it ensures full ventilation coverage across large cooking lines. The unit features a built-in engine, controller, and LED lighting, delivering a maximum air capacity of 2500 m³/h. It is equipped with five stainless steel filters (495 × 495 × 25 mm each) and a tap for grease drainage—providing a fully integrated, ready-to-install solution.

Technical Specifications:

• Width: 3000 mm

• Depth: 950 mm

• Height: 520 mm

• Material: Stainless steel (430)

• Color: Stainless steel

• Gross Weight: 100 kg

• Voltage: 230 V

• Frequency: 50 Hz

• Electrical Power: 0.245 kW

• Connection Diameter: 300 mm

• Air Capacity: 2500 m³/h (max)

• Filter Size (WxDxH): 5 × 495 × 495 × 25 mm

• Lighting: Yes

• Number of Filters: 5

• Filters: Yes

• Tap: Yes

• Controller: Yes

• Engine: Ye
