MOUNTED HOOD BOX MODEL COMPLETE 1200

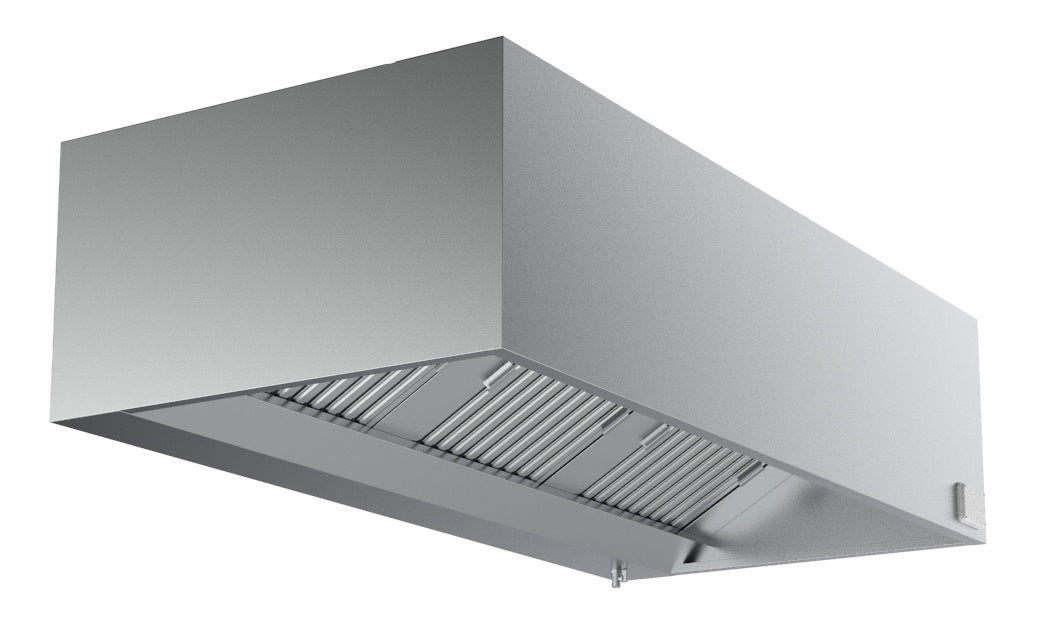

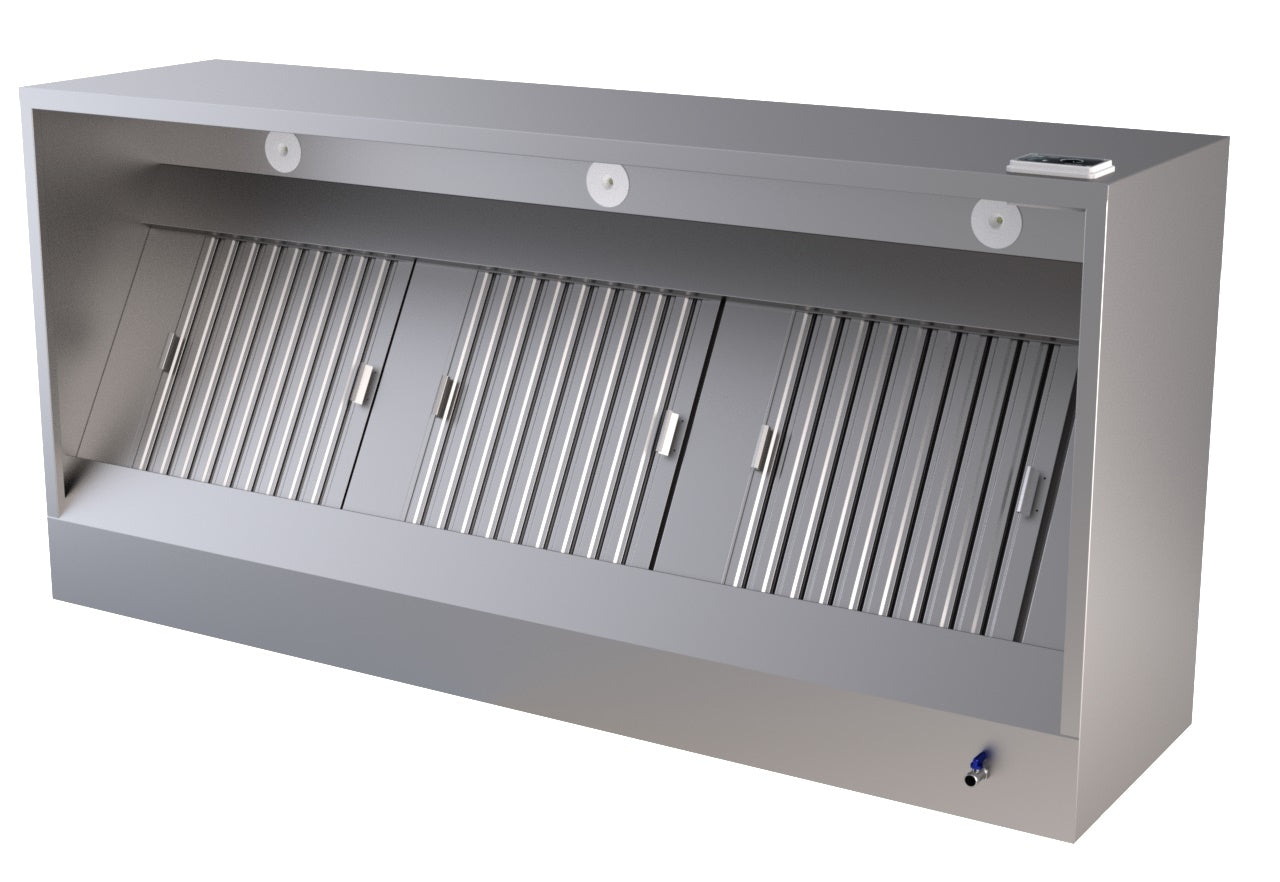

 Wall-Mounted Hood – Box Model COMPLETE (1200 mm Width)

A complete wall-mounted box-style hood featuring integrated engine and controls—ideal for mid-size kitchen areas needing an all-in-one extraction solution.

Product Description:

This 1200 mm wide complete box-model wall-mounted hood is constructed from durable 430-grade stainless steel and designed for plug-and-play functionality in commercial kitchens. With a depth of 950 mm and height of 520 mm, the unit offers enhanced airflow capture while remaining compact. It includes a built-in engine, controller, and LED lighting, delivering a maximum extraction capacity of 500 m³/h. A stainless steel filter (495 × 495 × 25 mm) and grease tap are included for efficient maintenance and grease management.

Technical Specifications:

• Width: 1200 mm

• Depth: 950 mm

• Height: 520 mm

• Material: Stainless steel (430)

• Color: Stainless steel

• Gross Weight: 65 kg

• Voltage: 230 V

• Frequency: 50 Hz

• Electrical Power: 0.147 kW

• Connection Diameter: 250 mm

• Air Capacity: 500 m³/h (max)

• Filter Size (WxDxH): 1 × 495 × 495 × 25 mm

• Lighting: Yes

• Number of Filters: 1

• Filters: Yes

• Tap: Yes

• Controller: Yes

• Engine: Yes
