WALL-MOUNTED HOOD BOX MODEL COMPLETE 1000

 WALL-MOUNTED HOOD BOX MODEL COMPLETE 1000

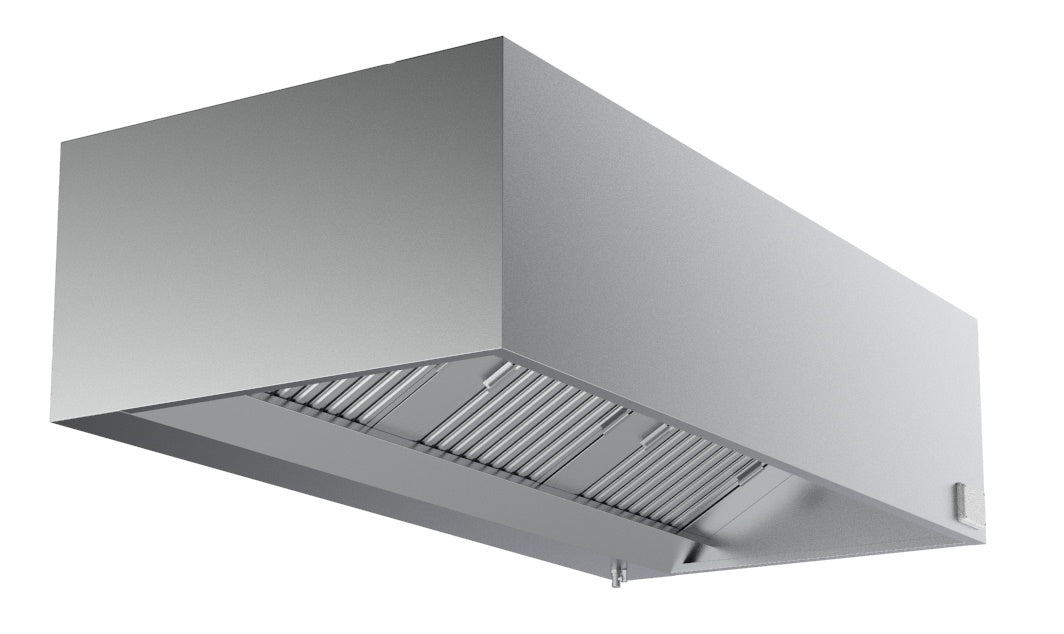

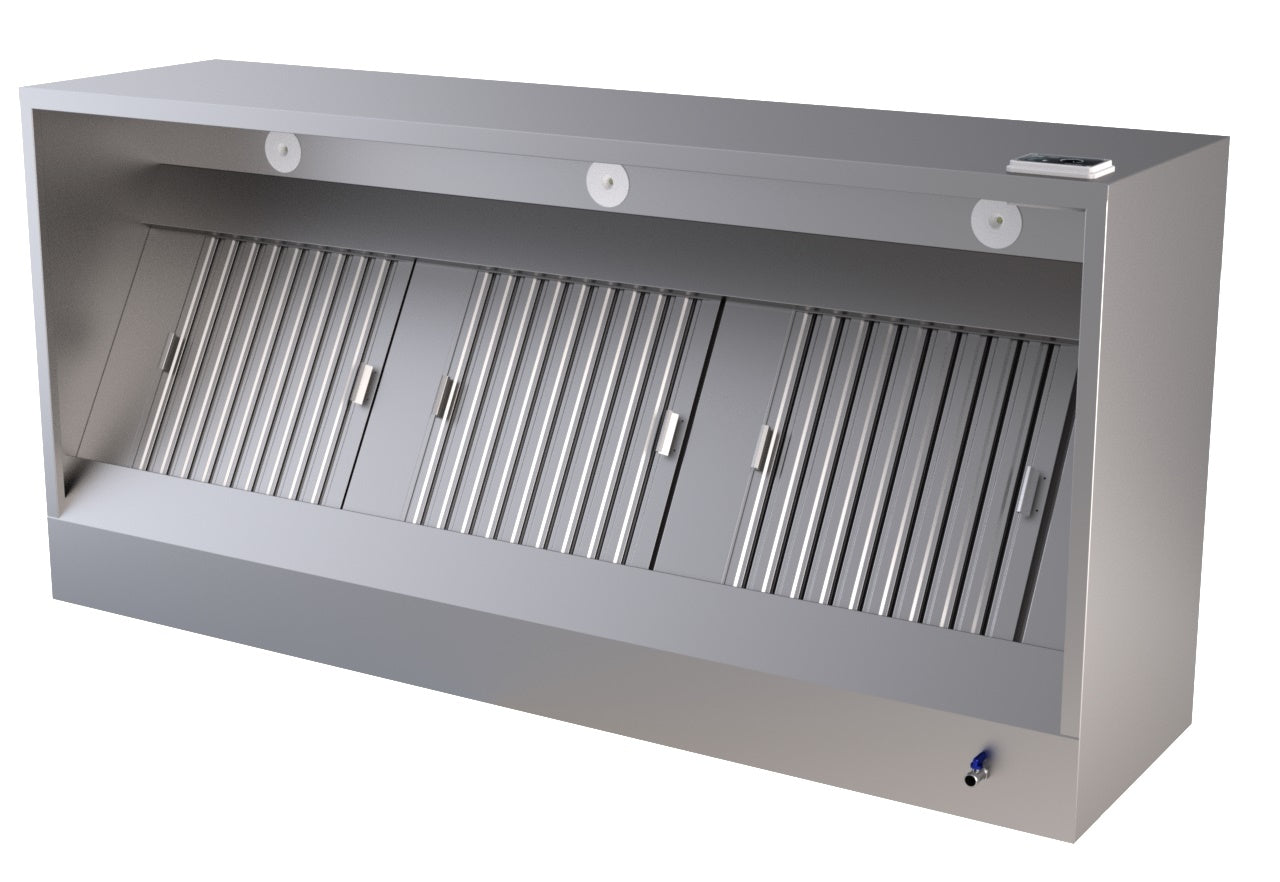

A fully equipped box-style wall-mounted hood with built-in engine and controls—ideal for compact professional kitchens requiring plug-and-play ventilation.

Product Description:

This 1000 mm wide complete wall-mounted hood is designed for kitchens needing a ready-to-use ventilation solution. Made from 430-grade stainless steel, the unit features a box-style body with a depth of 950 mm and an extended height of 520 mm for improved airflow management. It includes a built-in engine, controller, and lighting, making it fully functional out of the box. With a maximum extraction capacity of 500 m³/h, it’s well-suited for smaller or localized cooking stations. The included filter (495 × 495 × 25 mm) and grease tap enhance maintenance and hygiene.

Technical Specifications:

• Width: 1000 mm

• Depth: 950 mm

• Height: 520 mm

• Material: Stainless steel (430)

• Color: Stainless steel

• Gross Weight: 60 kg

• Voltage: 230 V

• Frequency: 50 Hz

• Electrical Power: 0.147 kW

• Connection Diameter: 250 mm

• Air Capacity: 500 m³/h (max)

• Filter Size (WxDxH): 1 × 495 × 495 × 25 mm

• Lighting: Yes

• Number of Filters: 1

• Filters: Yes

• Tap: Yes

• Controller: Yes

• Engine: Yes
